Vans Aircraft RV-4 (43.25″) – PETG Canopy
PETG Canopy for this neat sub 350W version of the Vans Aircraft homebuilt, a small electric scale weekend hack, that’s generally accurate in outline.
£15.00
Specification
- Model Name: Vans Aircraft RV-4
- Model: Scale
- Designed by: Andy Blackburn
- Scale: 1:6.4
- Wingspan: 43 1/4”
- Wing Area: 394 sq in (2.74 sq ft)
- Motor: 4-Max PO-3547-1190
- Battery: 3s2200 35C LiPo
- Prop: 10” x 5”
- ESC: 4-Max PP-TESC40AU, power supply lead disconnected.
- Servos: 1 x Hitec HS85MG, 1 x HS5085MG, 2 x JR DS 386
- Weight: 55 oz (3.44 lb)
- Rudder: Minimum +/- 35mm, ~20% expo
- Elevator: +12.5mm / -14.5mm, ~30% expo
- Rates at ~ 60-70%
- Ailerons: +13mm / -6.5mm, ~40% expo
Full Description

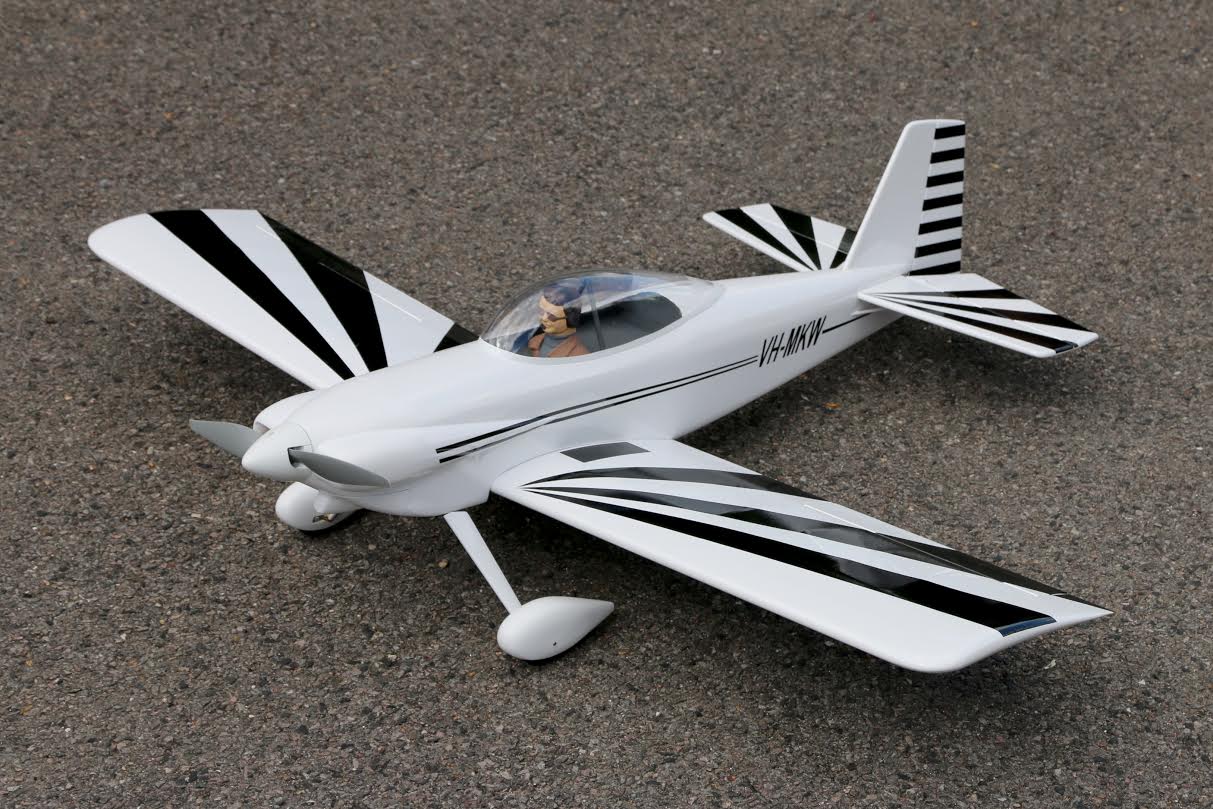

The RV-4 came about as designer Andy Blackburn was after a small electric scale weekend hack. The model is generally accurate in outline but there have been a few minor simplifications made in the interests of easier building and slightly better performance.
Please note: Although we don’t offer a Canopy for this model a Canopy is available from Vortex and the product code is CN100: http://www.vortex-vacforms.co.uk/canopies.htm
The Full size:- The Van’s RV-4 is an American light homebuilt aircraft supplied in kit form by Van’s Aircraft of Aurora, Oregon. It seats two people in a tandem seating configuration with the pilot accommodated in the front seat. The Van’s RV series has become the most popular kit-built aircraft in the world.
